PC-FXのコントローラをUSBと接続できる基板キット

This circuit makes a PC-FX controller work as a standard USB game controller.

  •  本商品
  •  配線ガイド
  •  使用例:USB化
  •  使用例:USB化
  •  使用例:USB化
  •  使用例:USB化

商品説明

This circuit makes it possible to use a PC-FX controller on a computer with an USB port. There are a few ways to use this circuit. For instance:

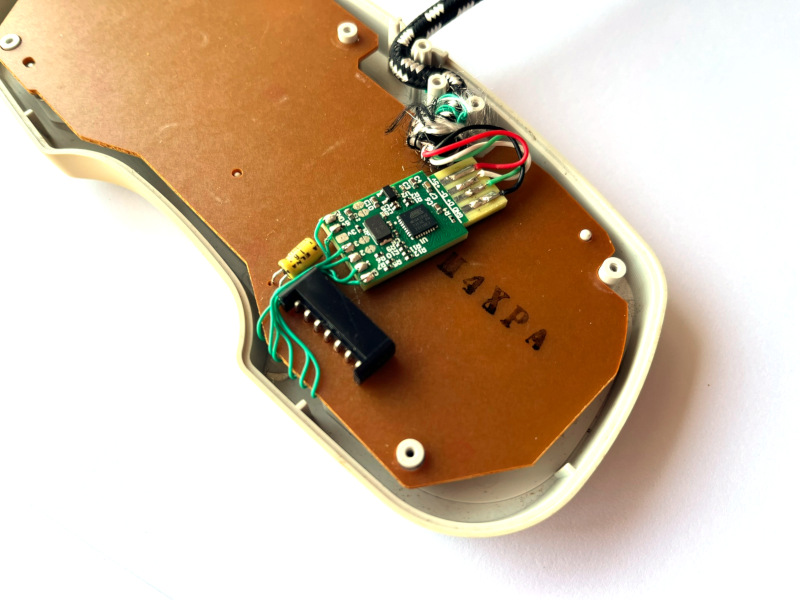

  • You can install it inside a controller, for a permanent conversion.
  • You can cut the controller cable, wire it to the board, and then put the board in a small project box.
  • If you happen to have a suitable controller port from a broken PC-FX, you can build a standalone adapter.

Features:
  • Supports original PC-FX controllers.
  • No drivers required. Implements a standard USB HID device.
  • Works under Linux, MacOS X and Windows 10/11 (32/64 bit).
  • Low latency - Maximum polling frequency of 1000 Hz. (1ms intervals)
  • Updateable firmware
  • Supported by the raphnet adapter manager.

注文

このサイトで購入

在庫あり : 通常3日以内発送
2月10日〜3月17日は、誠に勝手ながら休業とさせて頂きます。

品番BRD-PCFX-USB
品名PC-FXのコントローラをUSBと接続できる基板キット
価格$15.89

決済完了後、5日以内で発送します。(土日、祝日を除く)商品が到着するまで、翌日~7日ほどです。
値段は米ドルで表示されてあり、予告なし更新されることがあります。

リンクとダウンロード

説明リンク

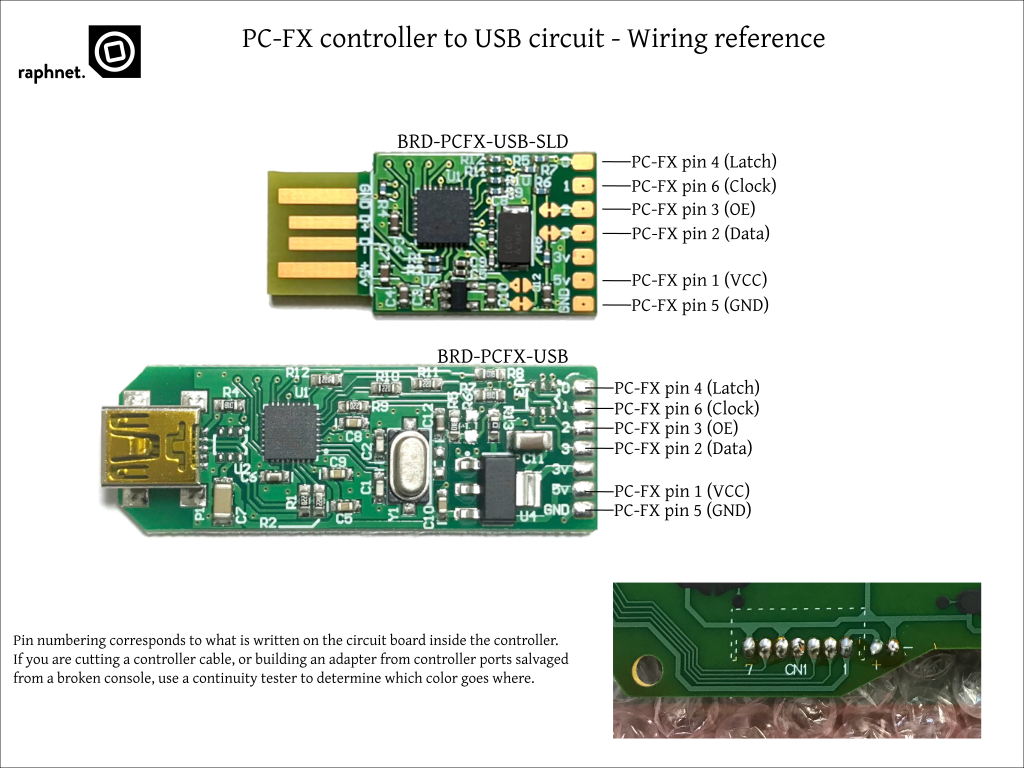

配線ガイドwiring_pcfx_usb.pdf
How to test your USB adapters and controllersページへ移動
